Steam & Oak Leil 510 Canopy Garden Sauna, 5.1 x 2.3m

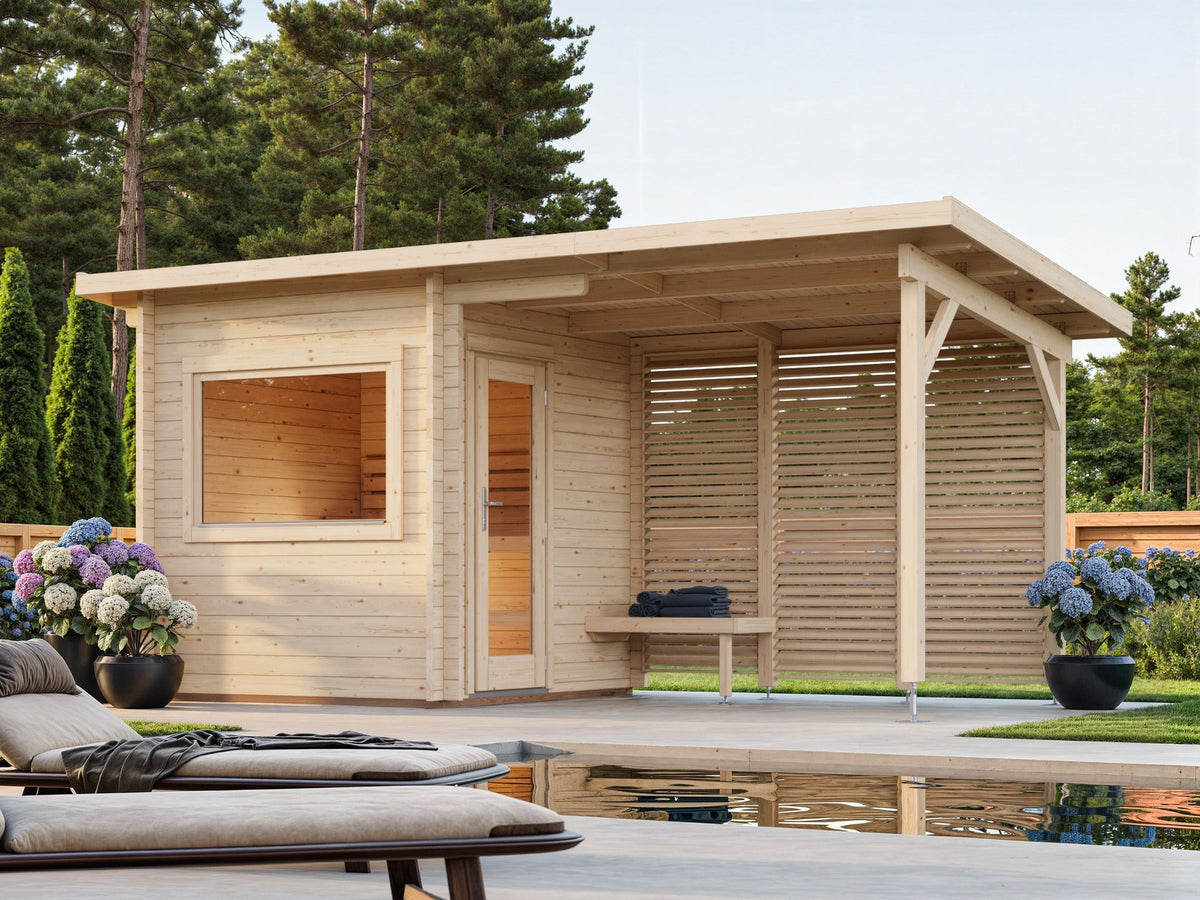

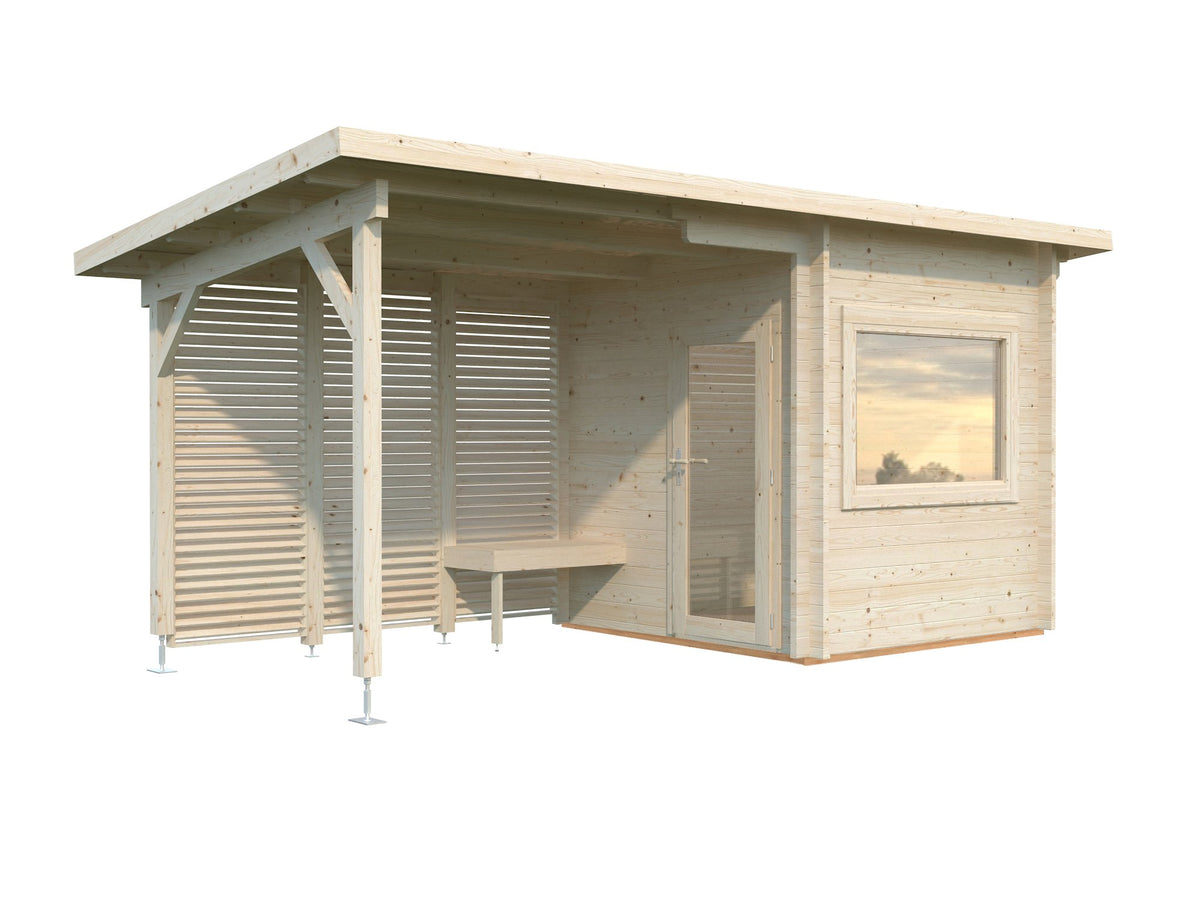

The Leil 510 Canopy is a garden sauna house in 44mm Nordic spruce with a flat, membrane covered roof. A 5.9 m² covered canopy runs alongside the 4.1 m² sauna, so there is a dry place to sit between rounds.

Specification

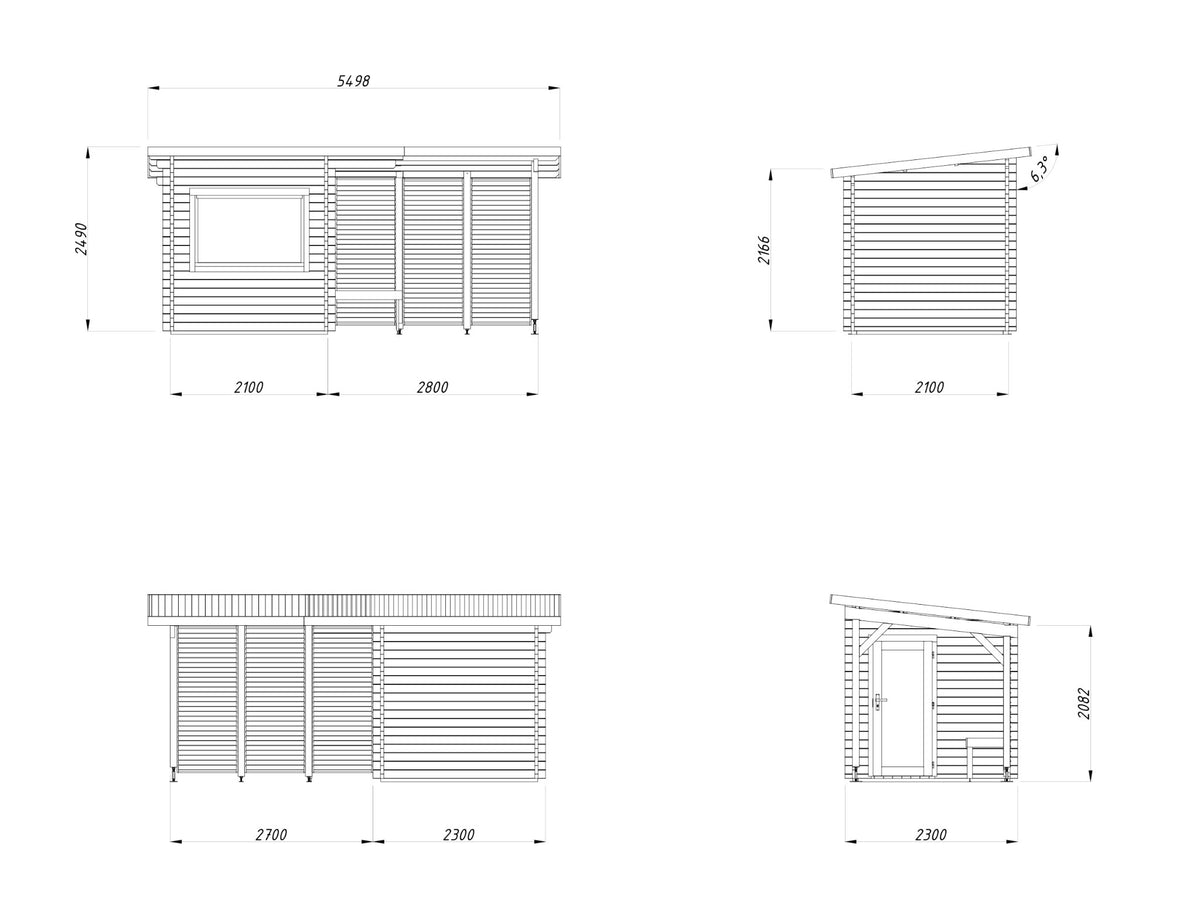

• Outside size: 5.1 x 2.3m, 2.49m high

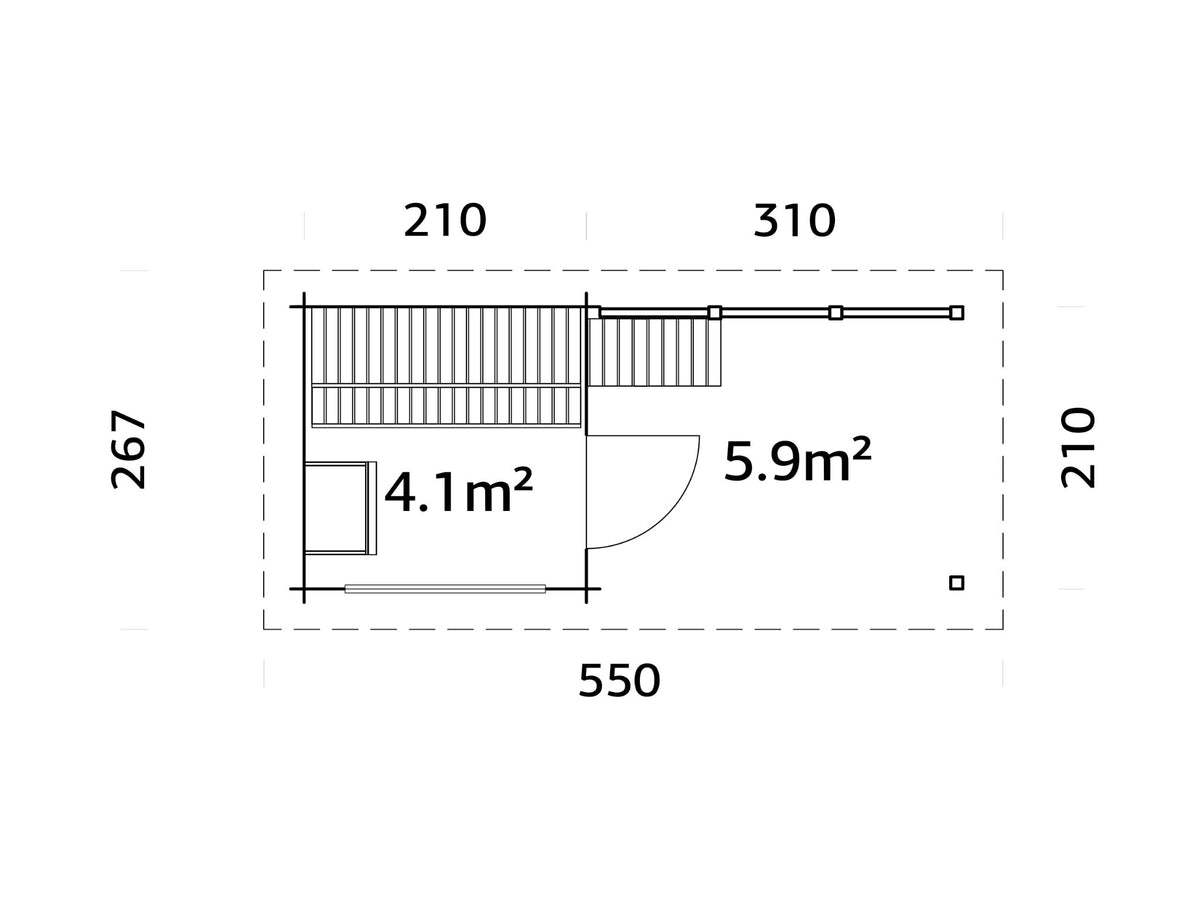

• Rooms: 4.1 m² sauna room plus a 5.9 m² covered canopy
• Walls: 44mm
• Timber: slow grown Nordic spruce

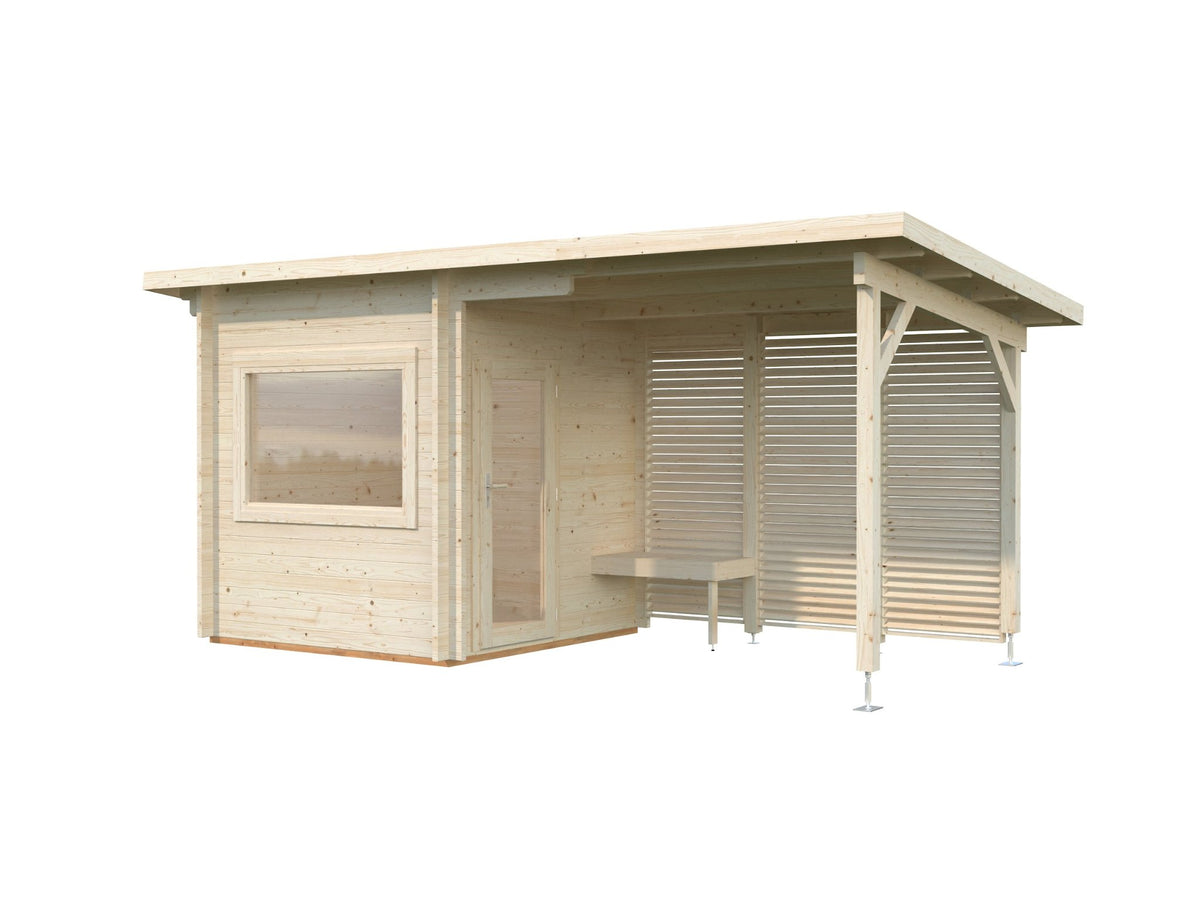

• Finish: natural, or factory painted in one of four colour schemes, chosen after you order
• Roof: EPDM rubber membrane and rain gutter included in the price
• Treatment: the natural, untreated finish needs an exterior wood treatment after assembly
• Warranty: 5 year manufacturer's warranty, provided the timber is treated as recommended
• Heater: choose one at checkout, or order the shell only

Choose your heater at checkout

• Shell only. The complete sauna, you source your own heater.
• Harvia Cilindro PC110 10.8kW. The largest Cilindro, with a taller stone column for the extra output, controls built into the heater. Harvia rate it for rooms of 9 to 18m³.
• Harvia Legend PO110XW 10.8kW WiFi. The same output in the Legend stone basket design, with MyHarvia app control and the Harvia door sensor supplied.
• Harvia Pro 20 wood fired. A 24.1kW log burning stove, rated by Harvia for rooms of 10 to 30m³, with a large firebox and a big load of stones. No electrical supply needed. Supplied with a stainless steel chimney, and we confirm the chimney route with you before you order.

Sizing the heater. Harvia size heaters on the room volume, then add 50% for solid log walls and about 1.2m³ for every square metre of glass, because both soak up heat that an insulated panel would not. The Leil 510 hot room is a full height room in solid 44mm timber with a large window and a glazed door, so it needs more heater than its floor area suggests. That takes it past what the 9kW heaters, the M3 and gas are rated for, so we offer the 10.8kW Harvia heaters and the Harvia Pro 20 wood stove.

We would rather sell you the right heater than the cheapest one. Tell us where the sauna is going and how you plan to use it, and we will confirm the choice with you before you order.

Before you order: your electricity supply

The electric heaters are not plug in appliances. The 10.8kW heater has its own supply requirement and we confirm that with you directly rather than printing a figure here. Budget for a qualified electrician and a Part P sign off. The wood stove needs no electrical supply.

Tell us your supply type and main fuse rating when you enquire and we will tell you honestly what will and will not work before you commit.

Factory painted colours

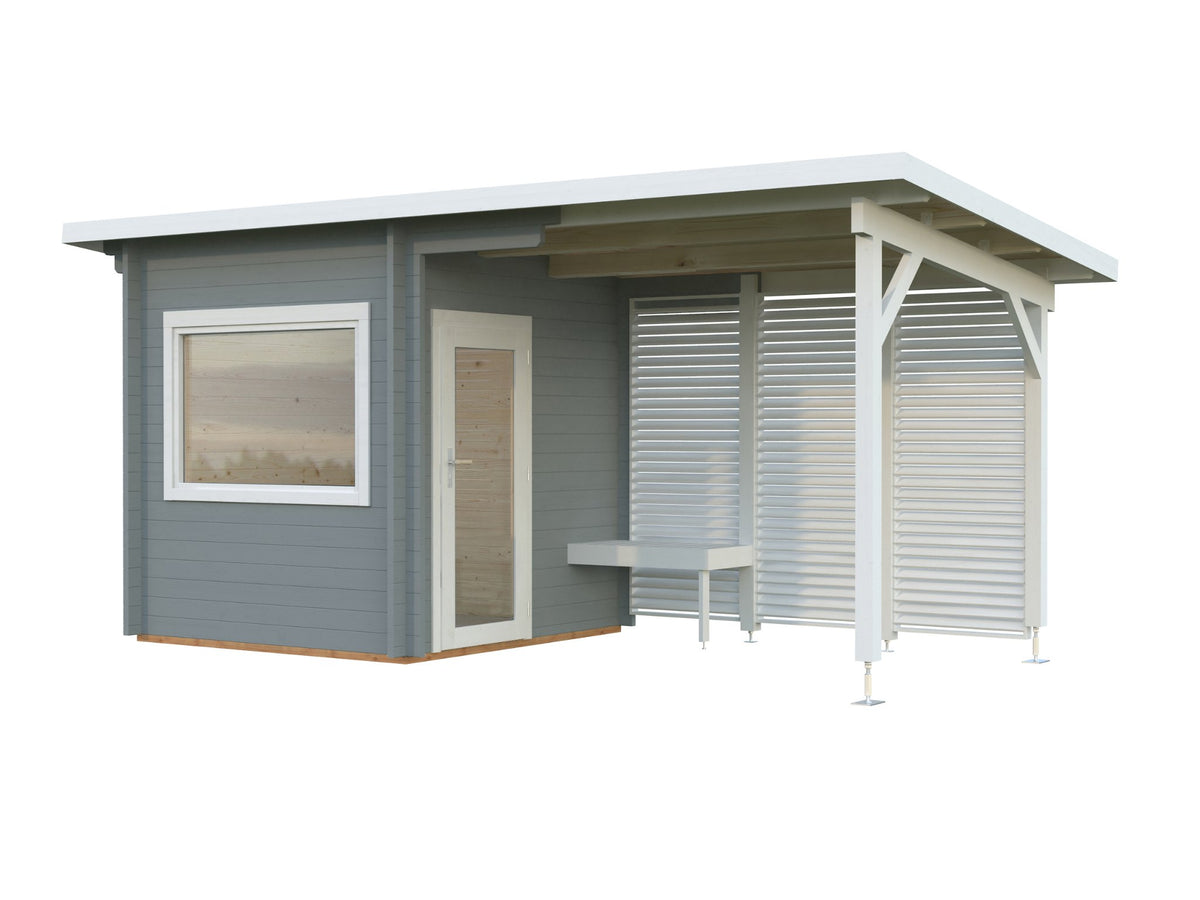

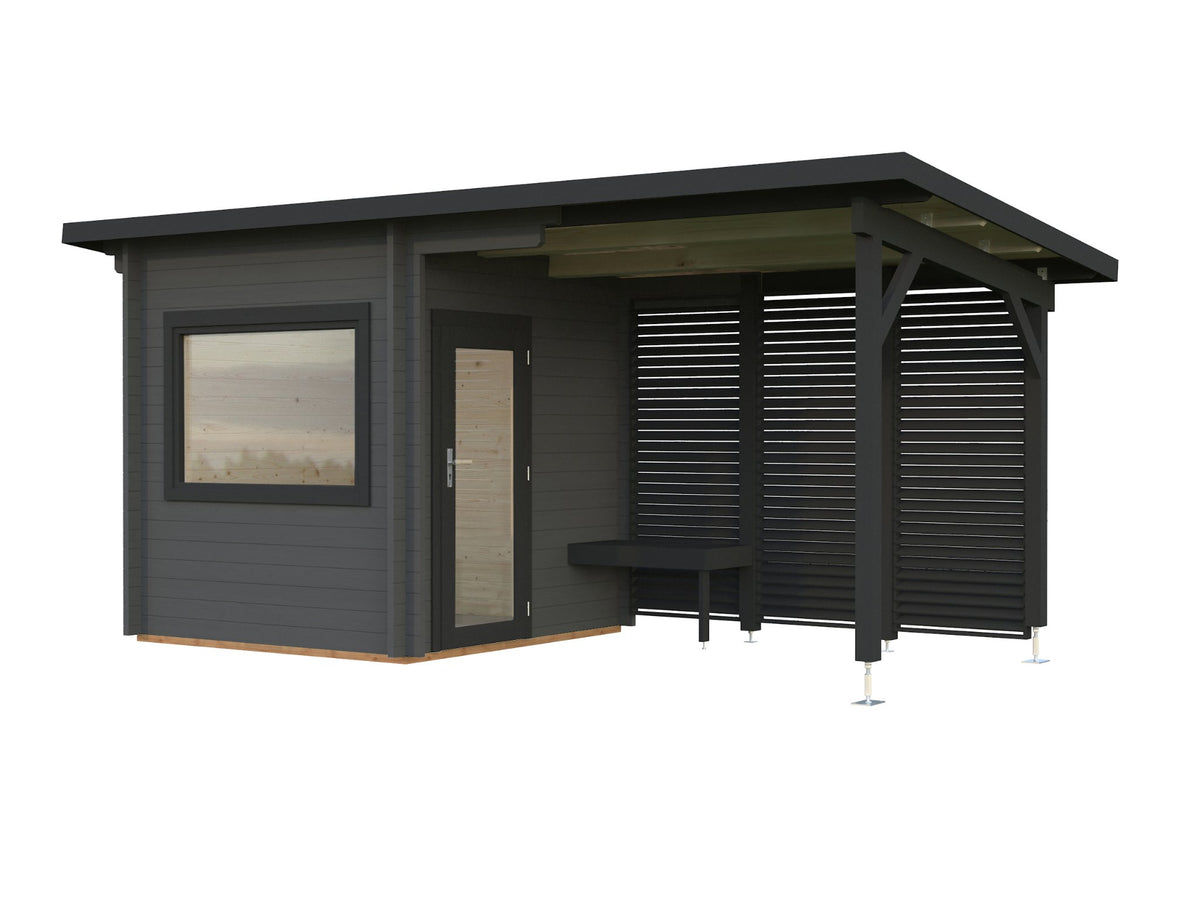

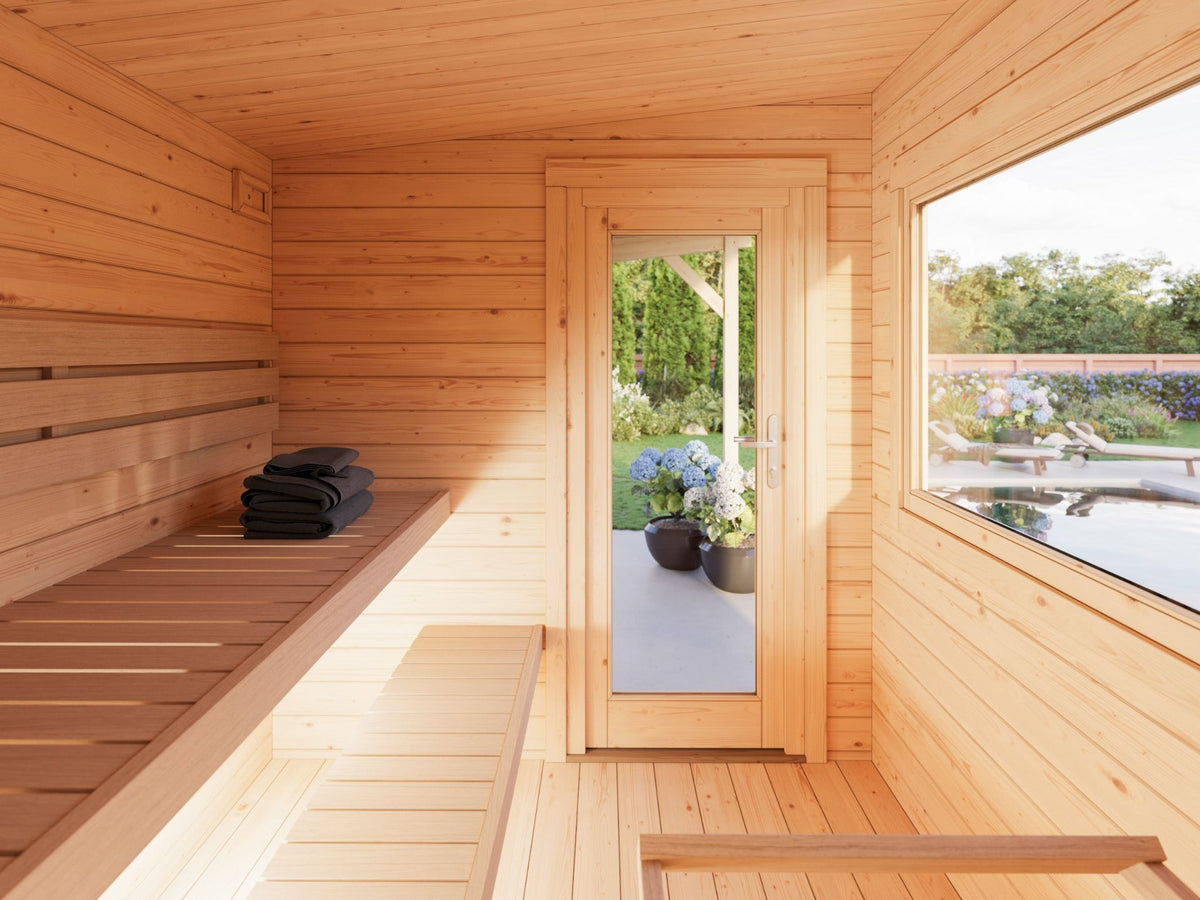

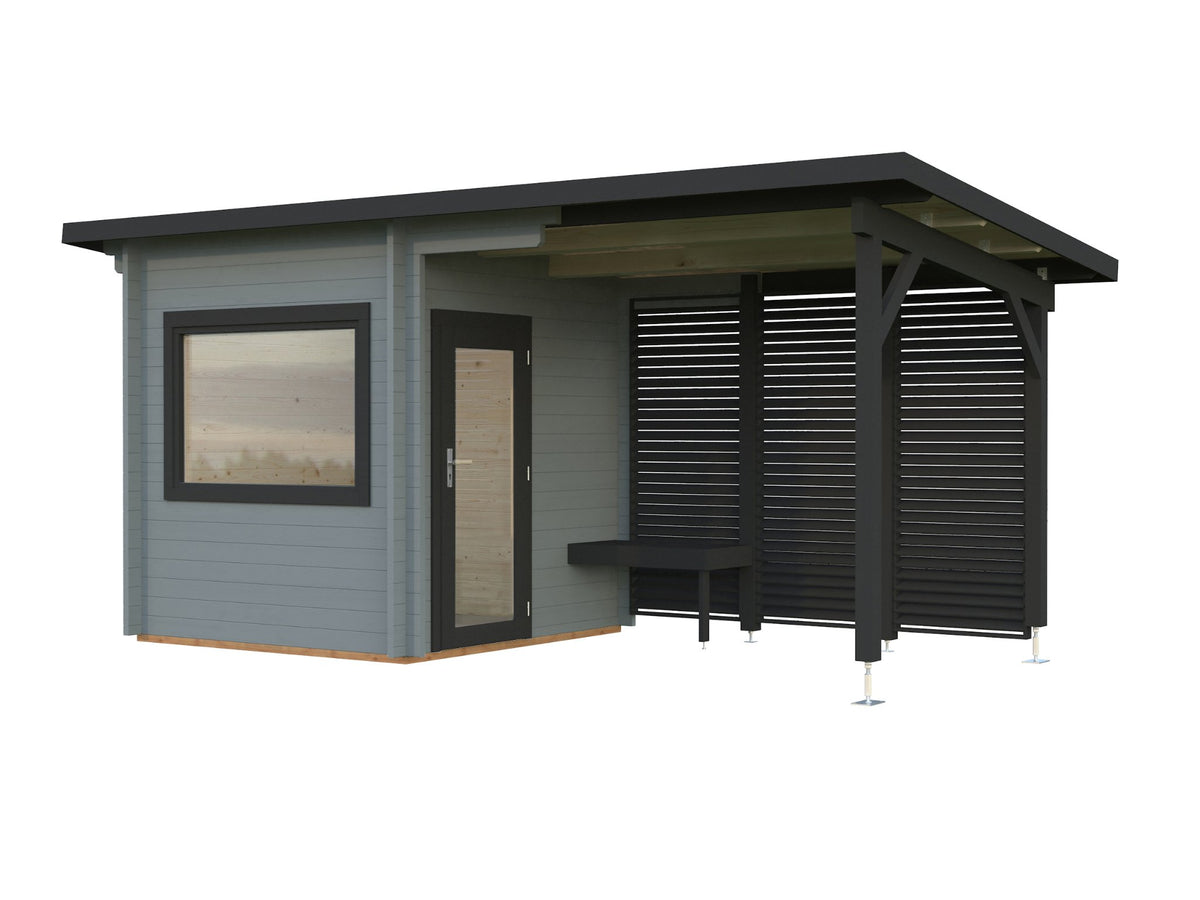

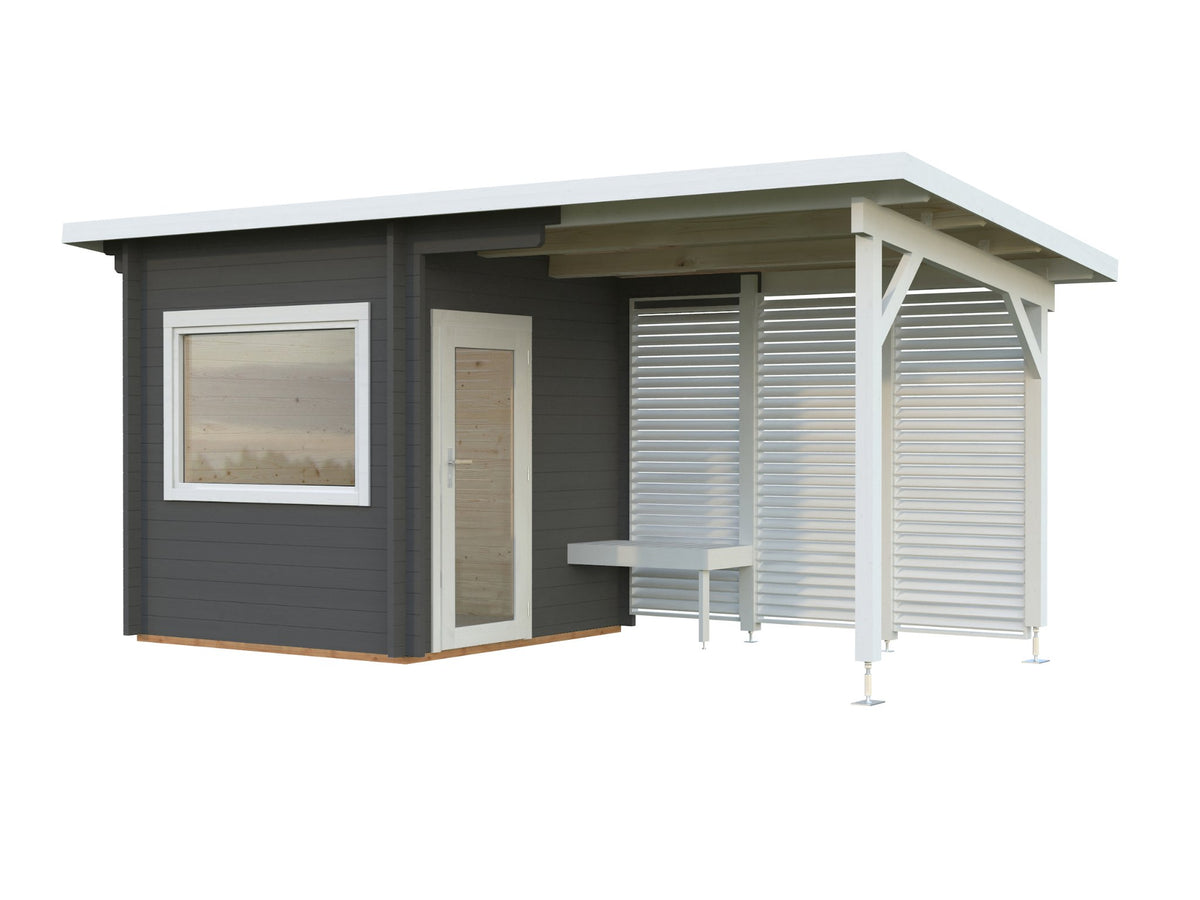

If you choose factory painted, we contact you after you order to pick your colours. The outside walls come in light grey or dark grey, with doors, windows and fascia boards in anthracite or white, so there are four combinations. Inside, the sauna stays natural timber. The photos show all four on this sauna.

Delivery and installation

• Kerbside delivery on mainland Great Britain, offloaded by crane, so the lorry needs to get close to your property. Islands are quoted separately.
• Typically 3 to 4 weeks from order. The delivery team contacts you to book the day, and nothing is delivered without your agreement.
• Arrives as a pre-cut kit with numbered parts and assembly instructions.
• Our installers can build it for you. Installation is quoted separately, so you only pay for it if you want it.
• It needs a firm, level base. Ask us if you are not sure what yours needs.
