Platinum Swim Elite | Large Single-Zone Swim Spa with Vortex Current System

The Platinum Swim Elite is the “big single-zone” swim spa in the Platinum range — designed for people who want serious space for fitness training, plus built-in hydrotherapy seating for recovery and downtime. It’s ideal if you want something more usable than a standard hot tub, but don’t want the complexity of a dual-zone unit.

Instead of splitting the unit into separate temperature zones, the Swim Elite keeps things simple: one large body of water, a powerful swimming current, and an ergonomic spa seating section. That makes it perfect for regular use — swim training, low-impact movement, mobility sessions, and then a warm-water reset in the seats.

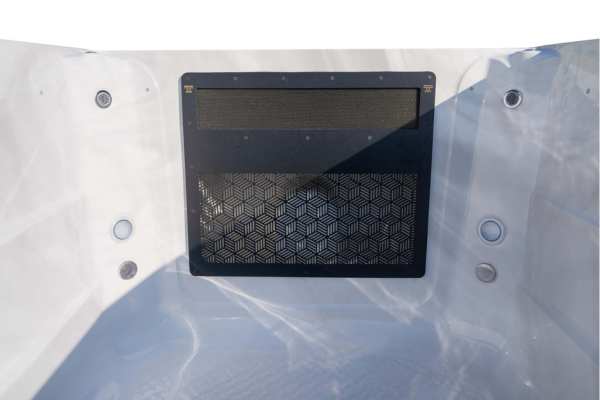

Vortex current system for real training

Swim spas live or die by the current. The Swim Elite is built around a Vortex 5kW swimming system, designed to create a continuous current so you can swim in place for endurance work and technique practice without needing a full pool length.

If you’re using it for fitness, it works brilliantly for steady swims, intervals, and low-impact conditioning. If you’re using it for wellness, it gives you a bigger, more versatile water space for movement and recovery than a hot tub can.

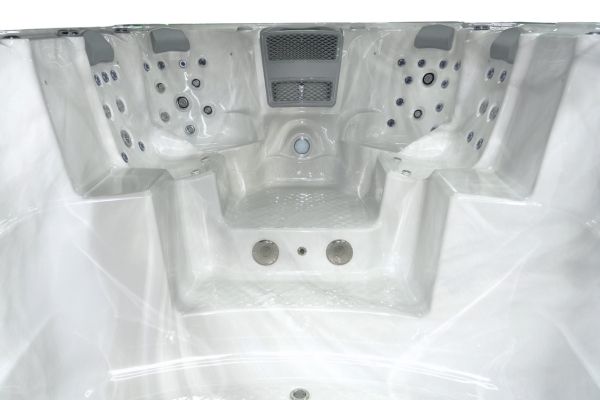

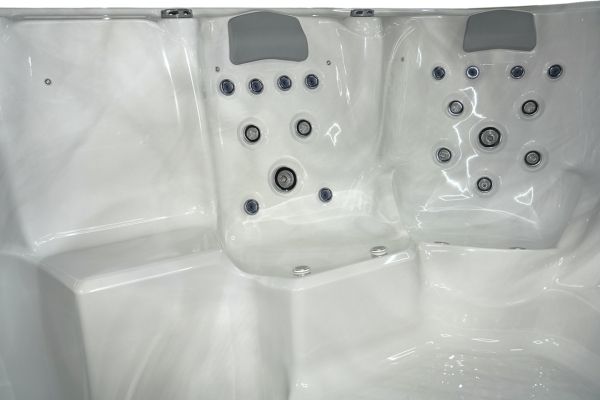

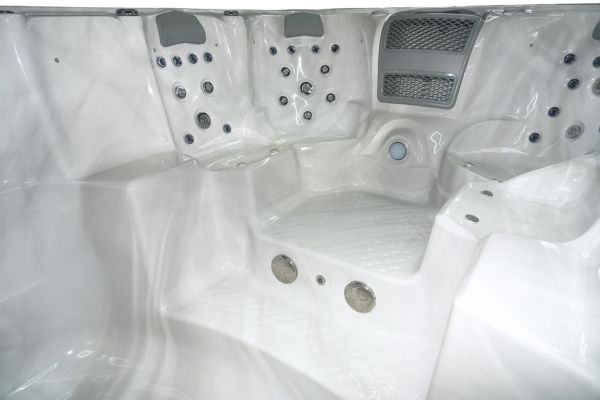

Hydrotherapy seating for recovery and relaxation

Alongside the swim area, the seating section includes strategically placed hydrotherapy jets designed to ease sore muscles after training, workdays, or long periods sitting. It’s a great “one unit does both” setup: move first, recover second.

Heat-pump ready, insulated, and designed for UK ownership

The Swim Elite is heat pump ready and comes with Platinum’s stated elite insulation plus eco heat insulation to help retain heat and improve efficiency for year-round use. It also includes the practical essentials — cover and steps — and a handrail to make entry/exit easier.

Delivery & site preparation

• Delivery type: specialist freight — large swim spas are typically delivered by booked freight rather than standard kerbside.
• Electrical: 50A dedicated supply, prepared by a qualified electrician before delivery.
• Base: reinforced concrete pad — swim spas are a substantial filled load.
• Access: swim spas often need crane or specialist lifting depending on site. Confirm gates, paths and turning points well before order.
• Installation tier: select your preferred installation option from the product menu at checkout.

Technical specification

• Dimensions: 5850mm x 2260mm x 1500mm
• Handrail: Yes
• Seating capacity: 4 seats, 0 loungers
• Water capacity: 7650 litres
• Weight: 1160kg
• Jets: 37 stainless-steel jets
• Swim system / pumps: 1 x 3hp + Vortex 5kW swimming system

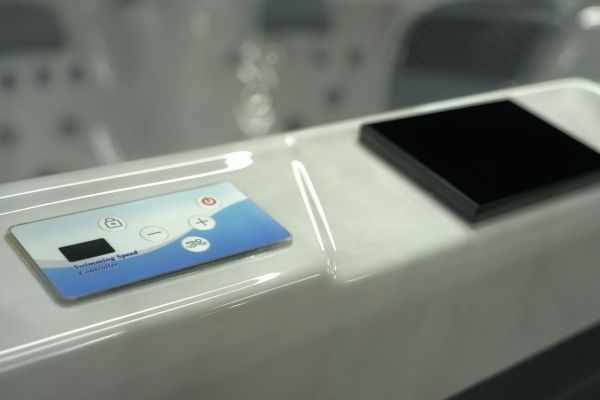

• Controls: Balboa
• Heater: 1 x 3kW
• Electrical requirements: 50A
• Bluetooth: Yes
• Speakers: Yes (x2)
• LED lighting: Yes
• Eco heat insulation: Yes
• Shell: Lucite acrylic

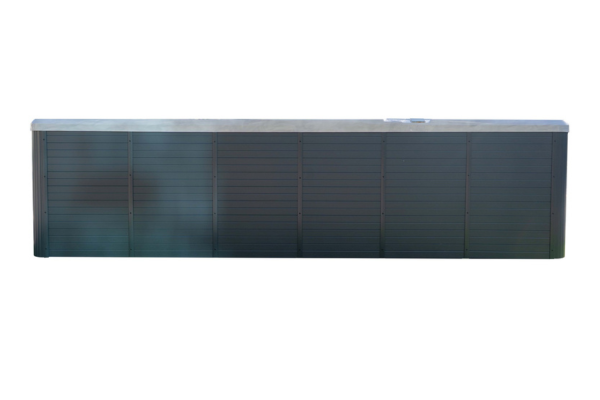

• Cabinet: Maintenance-free
• Included: Cover + steps
• Warranty: 5 year warranty
• Filter code: FLT4
